Features
TEMP COOK™ INDUCTION TECHNOLOGY (Cooktops)
The Temp Cook™ Induction Technology helps you avoid burning with dual temperature sensors that monitor and maintain your heat.
SMART PRESETS
Simplify mealtime with Smart Presets that automatically set the the right temp to saute, simmer, fry and more.

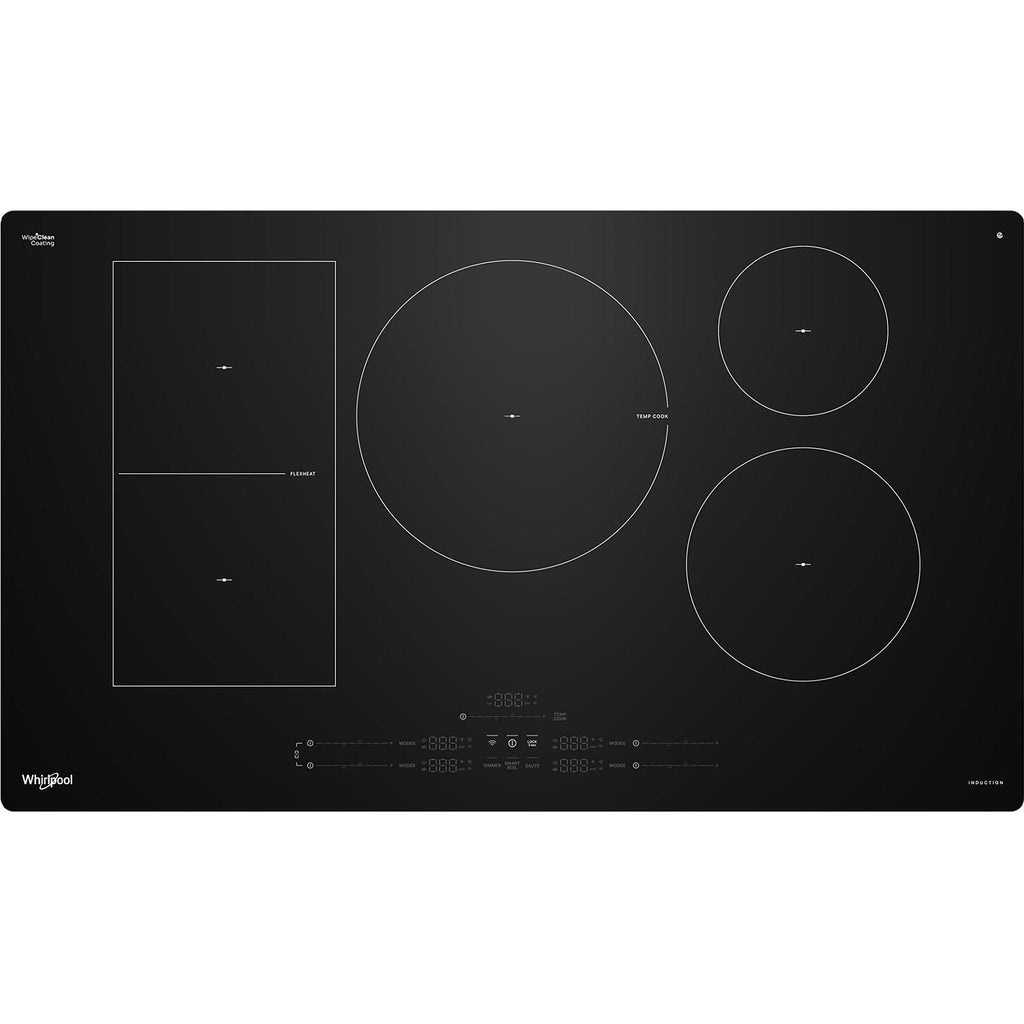

FLEXHEAT™ PLUS ELEMENT
Think big, small and most sizes in between with the Flexheat™Plus Element, a large, rectangular cooking space with pan size detection that only heats the space you need, giving you the flexibility to cook with different size pots and pans.
WIPECLEAN™ COATING
Skip scraping & intense scrubbing of baked-on foods with WIpeClean™ Coating, the easiest-to-clean induction cooktop coating.* Simply wet with water, wait, and wipe away. *When compared with cooktops with same heating technology with similar wattages.
VOICE CONTROL
Use your voice to set your cooktop to specific cooking modes like Simmer, Fry, and more with Alexa™ or Google™ *. *When connected. Wifi and app required. See Whirlpool.ca/connect for details. Alexa® is a trademark of Amazon.ca, Inc. of its affiliates

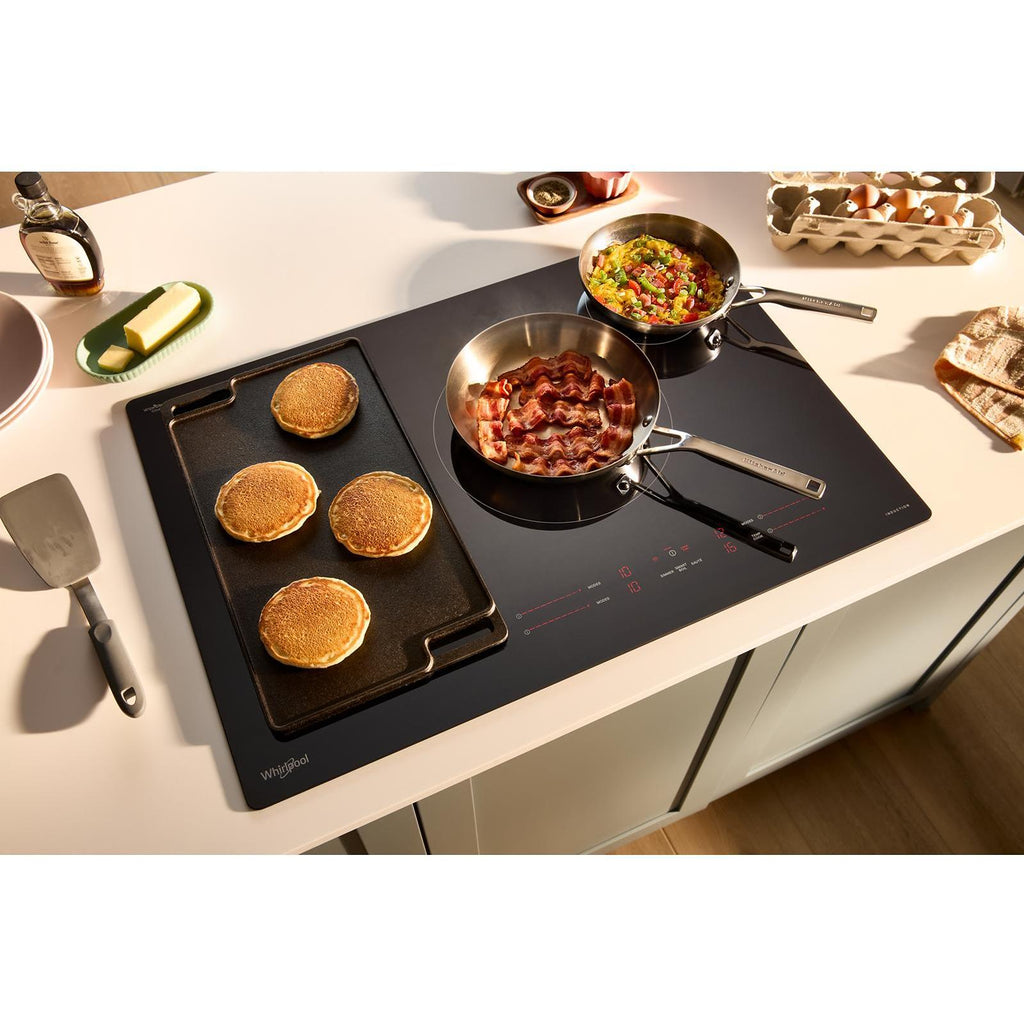

GRIDDLE ZONE.
Maximize your cooking space for a variety of mealtime options with Griddle Zone. Two individual heating elements combine to form one larger one, making it easy to cook up all that delights, all at once.
FAST BOIL
Boil 2x times faster than electric cooktops with Fast Boil.* *using power boost and compared to WCE77US6H
COOKWARE READY
Don’t worry about buying new cookware. The Induction cooktop is compatible with most induction capable pots & pans, so upgrading to induction is as simple as using it.
18 COOKING POWER LEVELS
18 power levels help give you precise control over your heat.
SMART FEATURE UPDATES
Stay on top of the latest cooking features and unlock new ones over time. Explore more ways to cook with updates through the Whirlpool app. *Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
ENERGY STAR® CERTIFIED
ENERGY STAR® Certified models exceed government standards to help save money on your utility bills.
PAN DETECTION
Pan detection makes sure you only heat the space you need by sensing when a pan is placed on an active burner and automatically directing heat to it.
WALL OVEN COMPATIBLE
Install this cooktop to work with a wall oven or on its own for added flexibility.*
*See Oven/Cooktop Compatibility in specifications for more information.

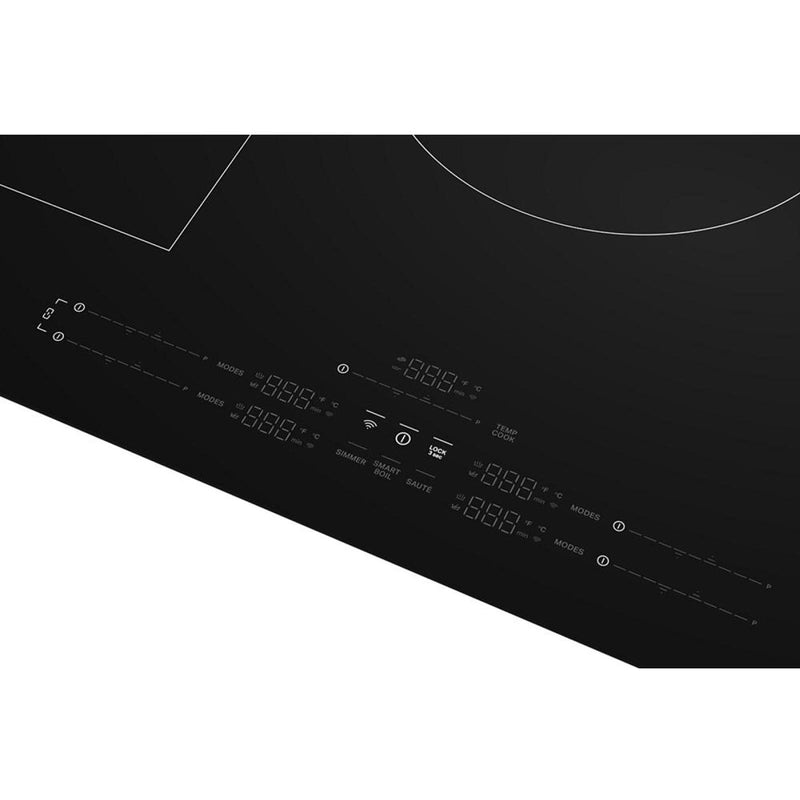

TOUCH CONTROLS.
Seemless touch controls appear while you use the but fade into the cooktop when turned off. Individual controls for each cooking zone provide quick access to TempCook™, Smart Presets and 18 manual power levels, keeping control of your cooktop at your fingertips
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Center Element Burner Power: 2600/3700watt(Boost)
• Right Front Element Burner Power: 2500/3700watt(Boost)
• Right Rear Element Burner Power: 1500/2200watt(Boost)
• Left Front Element Burner Power: 2500/3700watt(Boost)
• Left Rear Element Burner Power: 2500/3700watt(Boost)
• Right Front Element Burner Power: 2500/3700watt(Boost)
• Right Rear Element Burner Power: 1500/2200watt(Boost)
• Left Front Element Burner Power: 2500/3700watt(Boost)
• Left Rear Element Burner Power: 2500/3700watt(Boost)
Burner/Element Size
• Right Front Element Burner Size: 8"
• Right Rear Element Burner Size: 6"
• Left Front Element Burner Size: 7 1/2" Bridge
• Left Rear Element Burner Size: 7 1/2" Bridge
• Right Rear Element Burner Size: 6"
• Left Front Element Burner Size: 7 1/2" Bridge
• Left Rear Element Burner Size: 7 1/2" Bridge
Elements
Smoothtop
Surface Features
• Right Front Element Burner Type: Standard
• Right Rear Element Burner Type: Standard
• Left Front Element Burner Type: Bridge
• Left Rear Element Burner Type: Bridge
• Right Rear Element Burner Type: Standard
• Left Front Element Burner Type: Bridge
• Left Rear Element Burner Type: Bridge
Features
Technologies
• Temp Cook™ Technology
• Flexheat™ Plus Element
• WipeClean™ Coating
• Connectivity: App; Bluetooth; Remote Access; Voice Controlled; WiFi
• Smart Presets
• Flexheat™ Plus Element
• WipeClean™ Coating
• Connectivity: App; Bluetooth; Remote Access; Voice Controlled; WiFi
• Smart Presets
Wi-Fi
Yes
Digital Display
Yes
Downdraft Ventilation
No
Additional Information
• 18 Cooking power levels
• Automatic Pan Detection
• Automatic Pan Size Adjustment
• Control Location: Front
• Control Type: Electronic
• Cooktop Configuration: All Burners
• Cookware Ready
• Fast Boil
• Griddle Zone
• Heating Element On Indicator Light
• Hot Surface Indicator Light
• Pan Detection
• Power Boost
• Smart Feature Updates
• Touch Controls
• True Flush Installation
• Wall Oven Compatible
• Country Of Origin: USA
• Automatic Pan Detection
• Automatic Pan Size Adjustment
• Control Location: Front
• Control Type: Electronic
• Cooktop Configuration: All Burners
• Cookware Ready
• Fast Boil
• Griddle Zone
• Heating Element On Indicator Light
• Hot Surface Indicator Light
• Pan Detection
• Power Boost
• Smart Feature Updates
• Touch Controls
• True Flush Installation
• Wall Oven Compatible
• Country Of Origin: USA
Electrical Information
Information
• 208v Compatible
• Amps: 50
• Hz: 50
• Volts: 208
• Amps: 50
• Hz: 50
• Volts: 208
Certifications and Approvals
ADA Compliant
No
Information
• ENERGY STAR®
• UL
• UL
Accessories
Optional
Griddle

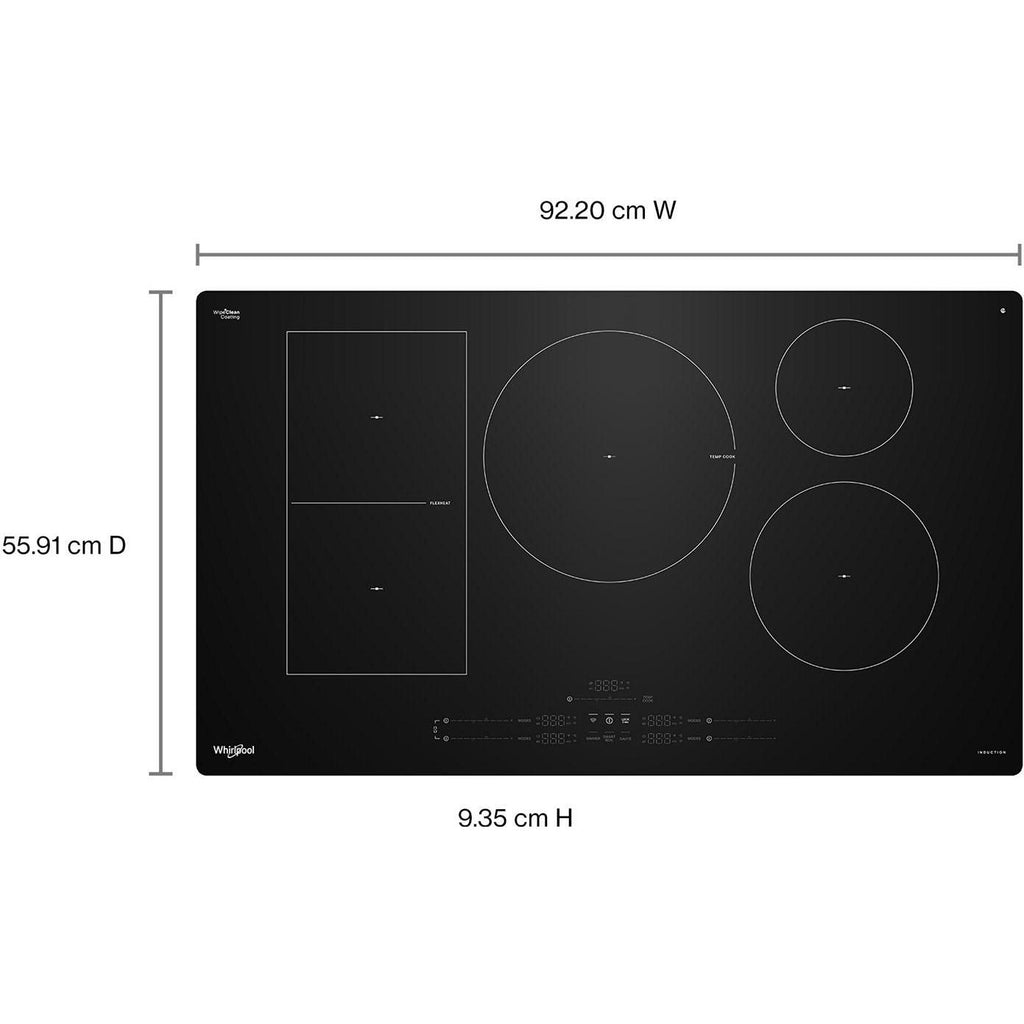

Dimensions
Class Width
36"
Width
36.3 inch(es) / 92.2 cm
Height
3.68 inch(es) / 9.35 cm
Depth
21.3 inch(es) / 54.1 cm
Weight
55.18 lb(s) / 25.03 kg
Additional Dimensions
• Cutout Depth: 20.43 "
• Cutout Width: 33.07 "
• Cutout Height: 3.94 "
• Cutout Width: 33.07 "
• Cutout Height: 3.94 "
Shipping Dimensions
Width
40.24 inch(es) / 102.21 cm
Height
8.5 inch(es) / 21.59 cm
Depth
25.5 inch(es) / 64.77 cm
Warranty
Warranty
• one (1) year from the date of delivery of the original purchase (parts and labor included)
• years two (2) through five (5) from the date of delivery of the original purchase (certain component parts and labor included)
• years two (2) through five (5) from the date of delivery of the original purchase (certain component parts and labor included)
UPC
UPC#
883049705538
