Features
EXPRESS WASH CYCLE
Allows you to wash lightly soiled items up to 35% faster. Compared to normal cycle.

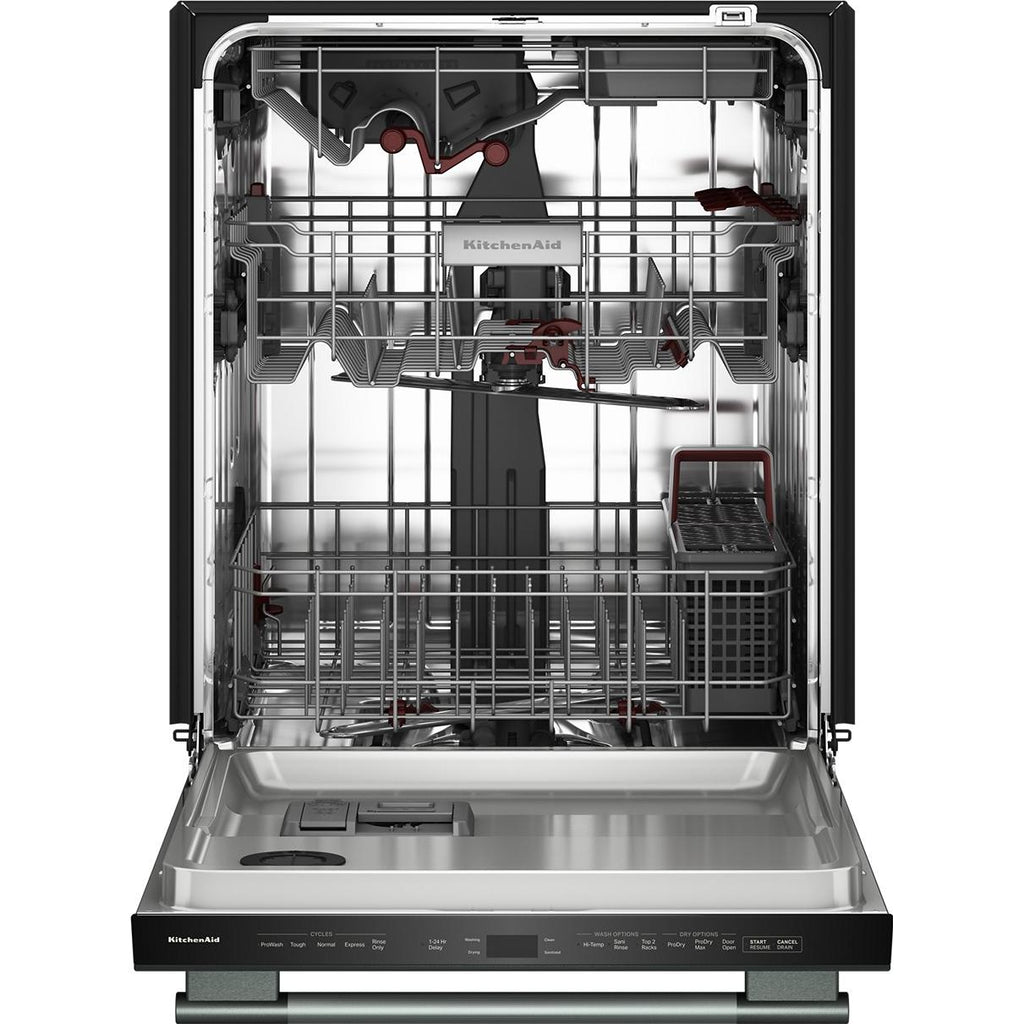

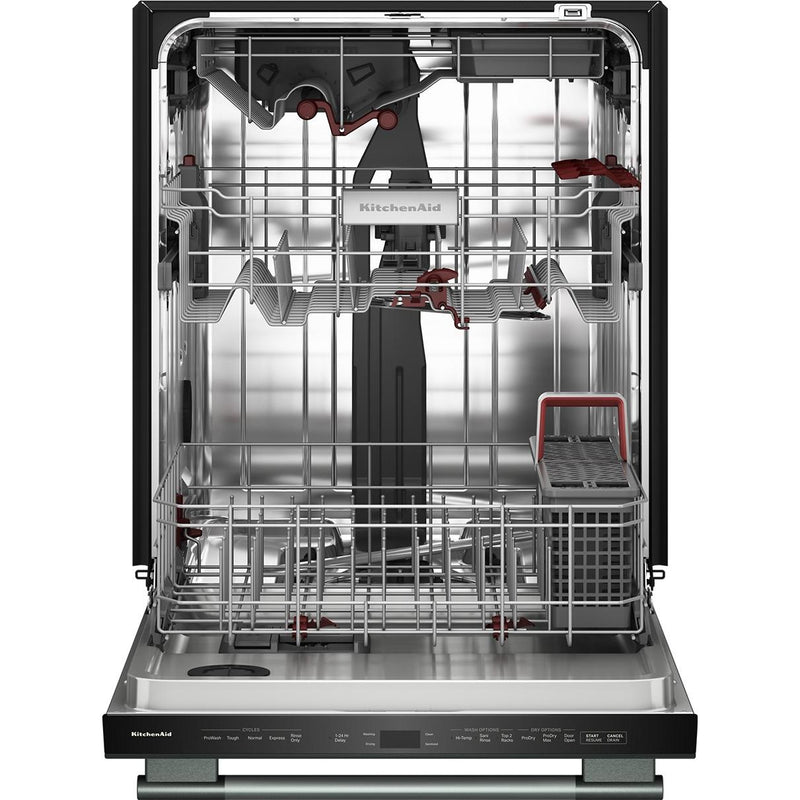

ADJUSTABLE MIDDLE RACK
Adds flexibility to fit tall items like a stand mixer bowl. Lower the rack to place large dishes inside or raise it to make room for platters, pitchers, blender jars and more in the rack below.
ADJUSTABLE ROWS IN MIDDLE AND LOWER RACKS
Fold down to make room for dishes in a variety of shapes and sizes like roasting pans, serving bowls, colanders and dutch ovens.
Additional Features
50+ TOTAL WASH JETS
Provide complete cleaning coverage for dishes across all three racks, eliminating the need for pre-rinsing. With 3x more jets* than the leading competitor's third rack model, it ensures targeted cleaning for dishes on every level.
*Compared to Bosch SHX9PCM5N
360° MAX JETS™ THIRD RACK
Is the only third rack with 360° wash jets to clean pint glasses, coffee mugs and cereal bowls inside and out. The largest third rack available,* it also has a removable utensil caddy for cooking tools and features moisture-wicking tines for table-ready dishes.
*Among leading brands based on usable volume.
ADVANCED PRODRY™ SYSTEM
Delivers the best drying performance without rinseaid using a recessed heating element and a fan to draw moisture out of the wash tub giving you better drying results.

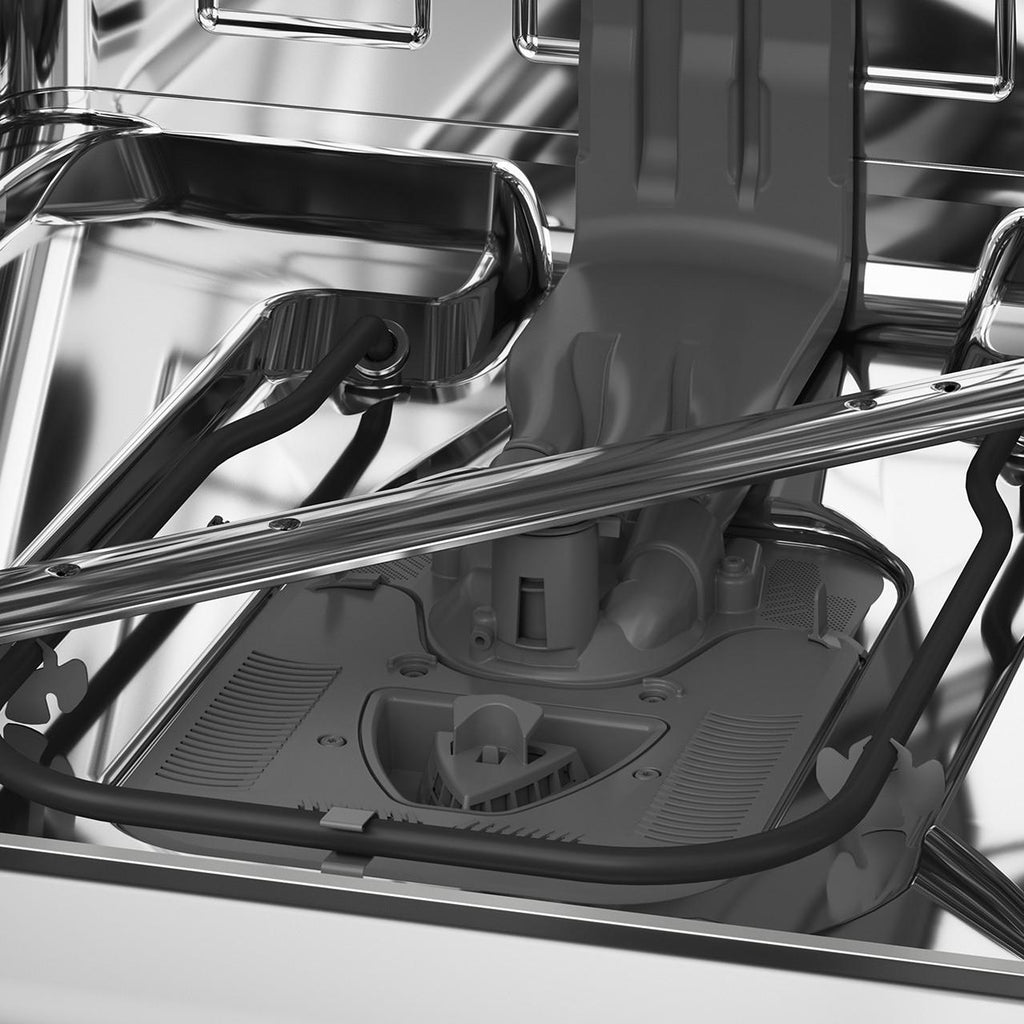

TRUE SELF-CLEANING FILTRATION
Is the only dishwasher filtration system* available that eliminates the need for manual filter cleaning. It continuously captures food particles, so only clean water circulates through the wash jets, then cleans itself as the dishwasher drains, so you can load without pre-rinsing.
AUTOMATIC DOOR OPEN DRY SYSTEM
Opens door 4" after the dry cycle ends to release water vapor and provide natural ventilation for an exceptional dry. Use the Automatic Door Open Dry System alone for our most energy efficient dry* or pair with ProDry™ option for improved drying performance.
*Compared to KitchenAid® Dishwashers when using ProDry™ Option
WATER REPELLENT TECH
Repels leftover water droplets on silverware baskets for dryer utensils
SATINGLIDE® RAILS IN THIRD AND MIDDLE RACKS
Premium rails allow racks to move effortlessly, even when fully loaded.
SANI-RINSE OPTION
Eliminates 99.999% of food soil bacteria by adding a high-heat final rinse to sanitize dishes.
PRODRY™ MAX OPTION
Extends the ProDry™ Cycle for loads that need extra time to provide better drying results*
*Compared to ProDry™ Cycle
STEMWARE SHIELD
Provides a dedicated zone with 4 stemware holders to protect wine glasses, champagne flutes and cocktail glasses from tipping over during wash cycles.
PROWASH™ CYCLE.
Uses a sensor to measure soil levels and adapts wash time and water temperature as needed for tough messes or lighter loads, because no two meals are exactly the same.
LOWER RACK SLIDING TINES
Can easily be adjusted for ideal loading of pots and pans or uniquely shaped dishware.
LEAK IDENTIFICATION SYSTEM
Helps detect most types of leaks and includes a drip tray underneath. If the system detects a problem, the dishwasher can stop filling, drain the tub and alert that service is needed.*
*Will not detect leaks from the water inlet or tub drain connections and hoses or leaks due to cracked tubs or doors

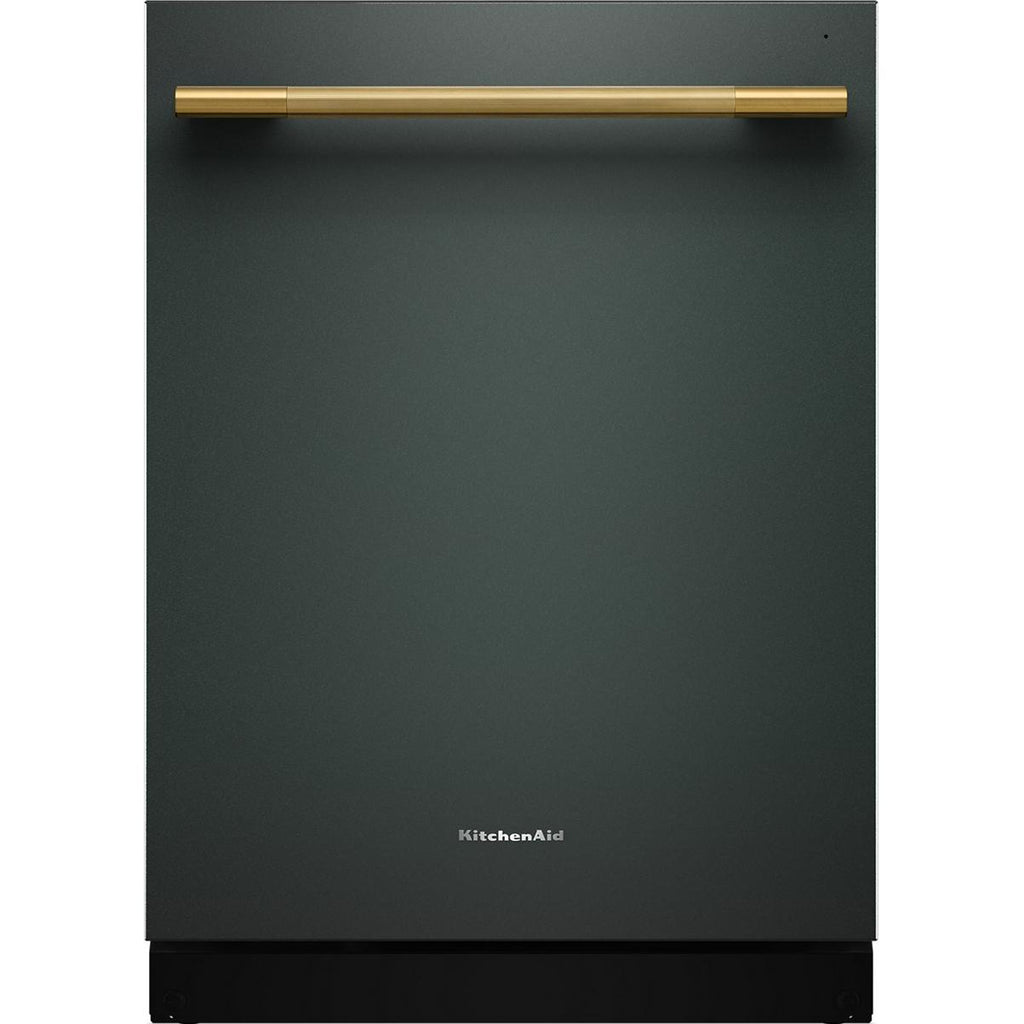

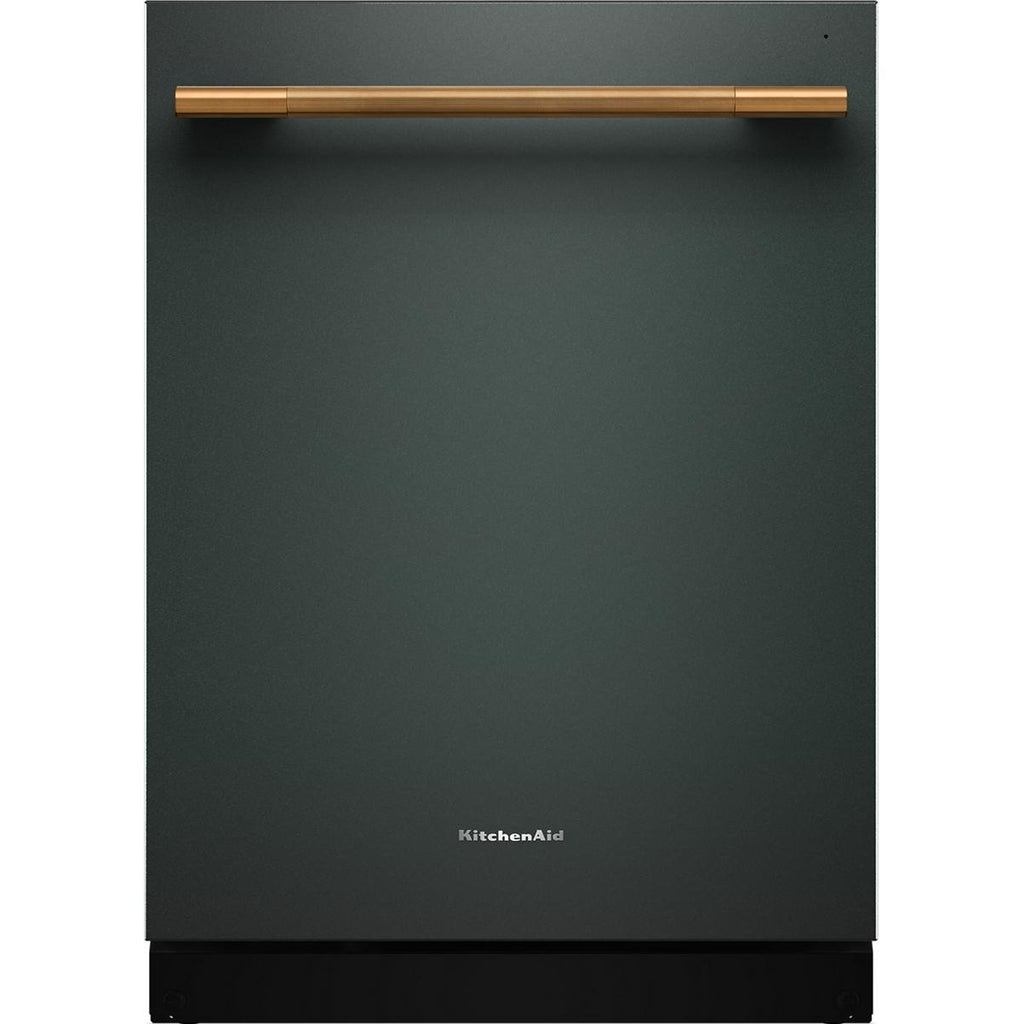

CUSTOMIZABLE HANDLES
Let you create a product palette aligned to your kitchen aesthetic. Choose from PrintShield™ Finish Stainless Steel, Juniper, or Black Ore appliance colors and make it yours with customizeable touchpoints. Personalized kits are available online to customize handles.

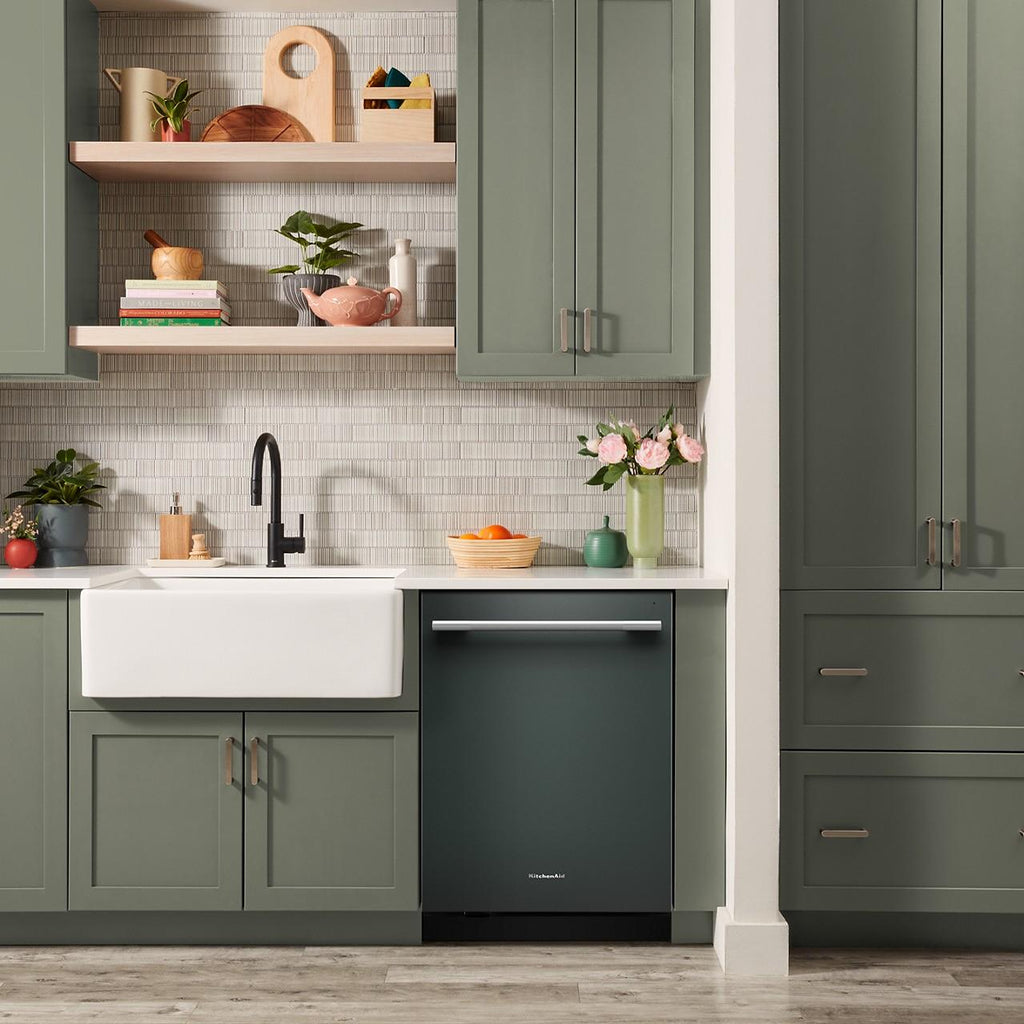

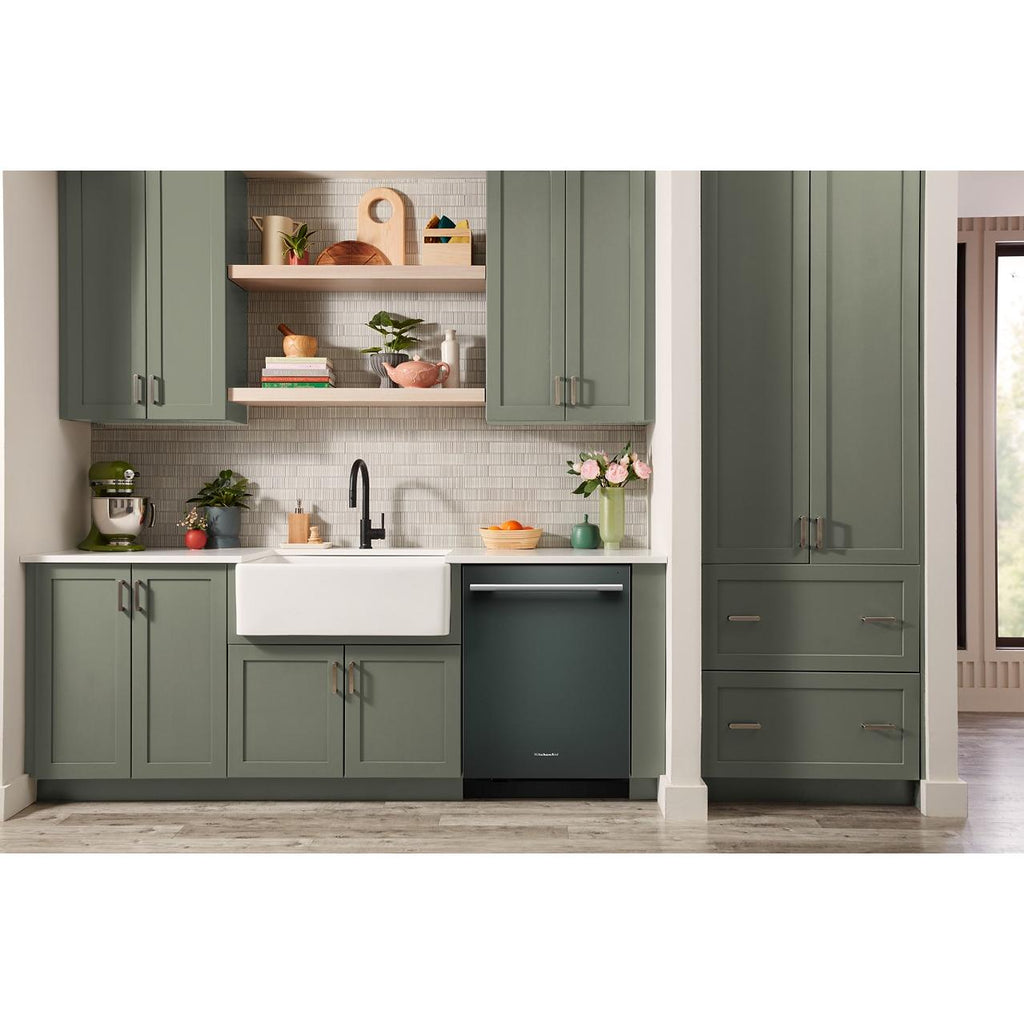

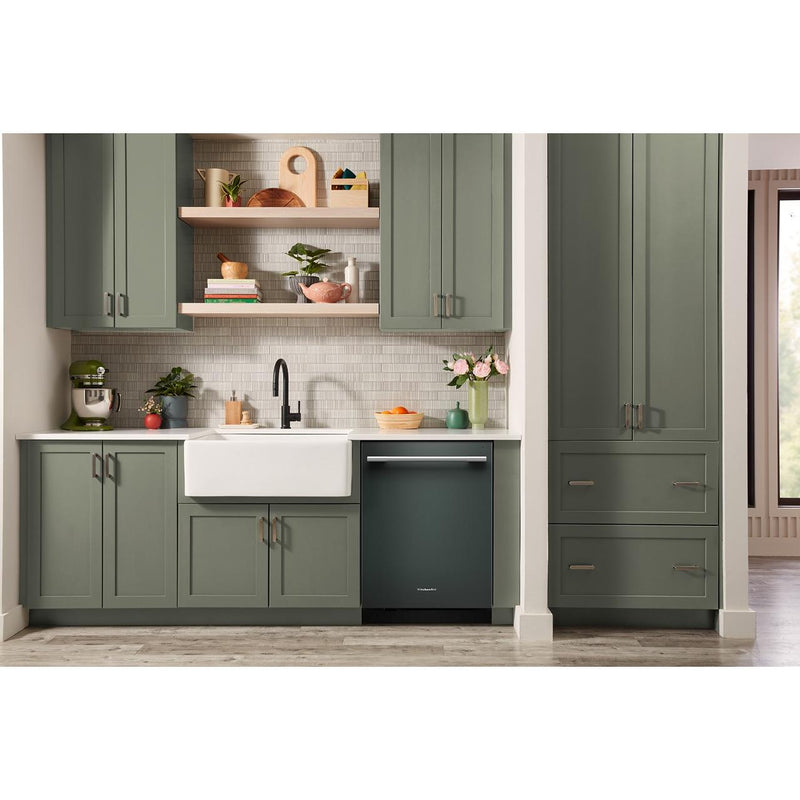

DESIGNED TO BE PERSONALIZED
Express your personality with a palette of premium finishes, including nature-inspired Juniper, warm Black Ore and classic Stainless Steel.
Specifications
General
Type
Built-In
Color
Green
Manufacturer Color
Juniper
Tub Material
Stainless Steel
Silence Rating
44 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Express Wash
• Normal
• ProWash™
• Rinse Only
• Tough
• Normal
• ProWash™
• Rinse Only
• Tough
Features
Technologies
• 360° Max Jets™ Third Rack
• Advanced ProDry™ System
• True Self-Cleaning Filtration
• Automatic Door Open Dry System
• SatinGlide® Rails in Third and Middle Racks
• ProDry™ Max Option
• ProWash™ Cycle
• Leak Identification System
• Advanced ProDry™ System
• True Self-Cleaning Filtration
• Automatic Door Open Dry System
• SatinGlide® Rails in Third and Middle Racks
• ProDry™ Max Option
• ProWash™ Cycle
• Leak Identification System
Delay Start
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Fold Down Tines
• Cushion Tip Tines
• Extras: Sliding Tines; Stainless Steel Wash Arm
• Glides: Wheels
• Style: Extended
• Rack Material: Nylon
• Tub Style: Built-in Tall Tub 24in.
• Wash System: Self Cleaning Filtration
• Wash System Type: Maintenance Free Microfilter
• Water Filtration
• Number Of Washarms: 5
• Number Of Racks: 3
• Drying System Type: Heating Element with Fan Assist and Door Open Dry
• Fingerprint Resistant
• Toe Panel Color: Black
• Handle Color: Stainless Steel
• Handle Material: Metal
• Handle Type: Towel Bar
• Dispensers: Detergent and Rinse Aid
• Number Of Wash Levels: 7
• Third Level Rack Glides: Hybrid Rail
• Third Level Rack Removable
• Third Level Rack Type: Third rack with dual rotating wash tubes

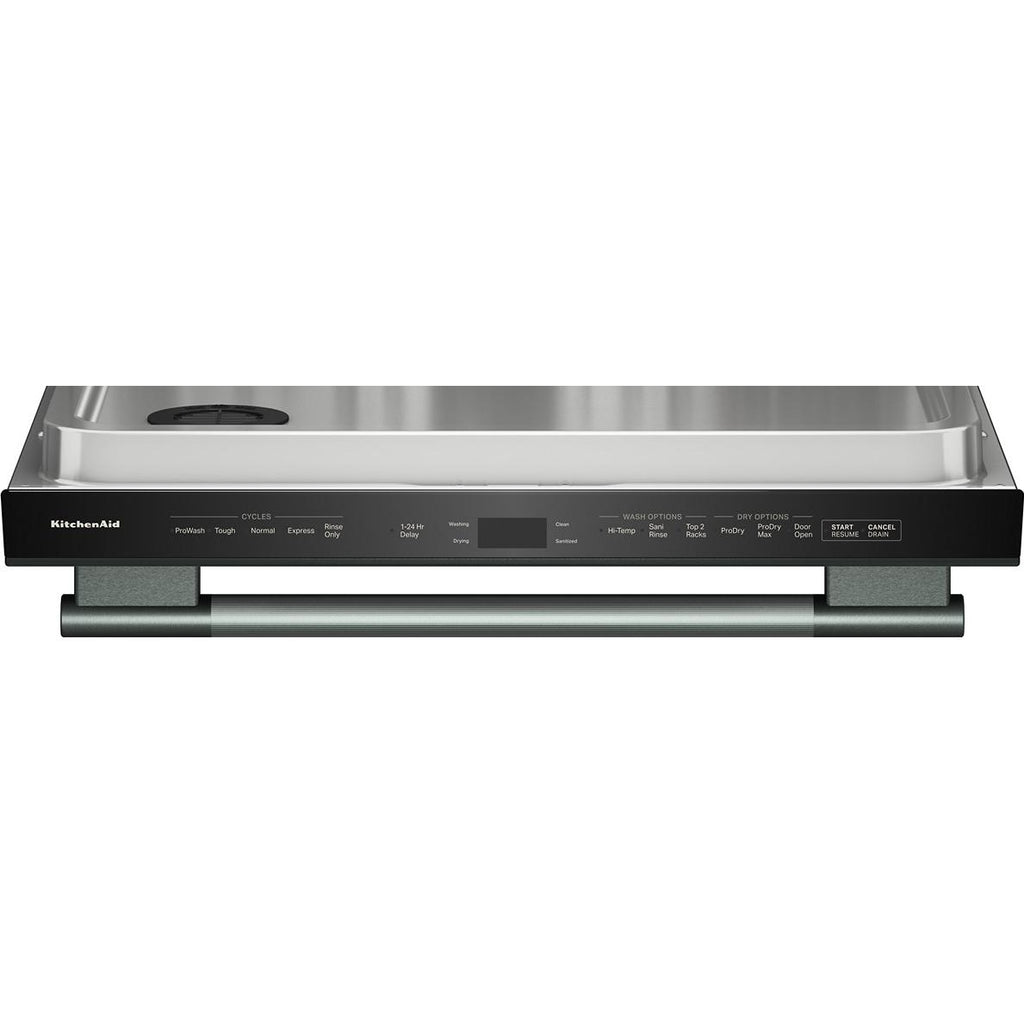

• Control Location: Top
• Control Type: Electronic
• End Of Cycle Signal
• Automatic Temperature Controls
• Status Light: Yes, Multi-Color
• Cushion Tip Tines
• Extras: Sliding Tines; Stainless Steel Wash Arm
• Glides: Wheels
• Style: Extended
• Rack Material: Nylon
• Tub Style: Built-in Tall Tub 24in.
• Wash System: Self Cleaning Filtration
• Wash System Type: Maintenance Free Microfilter
• Water Filtration
• Number Of Washarms: 5
• Number Of Racks: 3
• Drying System Type: Heating Element with Fan Assist and Door Open Dry
• Fingerprint Resistant
• Toe Panel Color: Black
• Handle Color: Stainless Steel
• Handle Material: Metal
• Handle Type: Towel Bar
• Dispensers: Detergent and Rinse Aid
• Number Of Wash Levels: 7
• Third Level Rack Glides: Hybrid Rail
• Third Level Rack Removable
• Third Level Rack Type: Third rack with dual rotating wash tubes
• Control Location: Top
• Control Type: Electronic
• End Of Cycle Signal
• Automatic Temperature Controls
• Status Light: Yes, Multi-Color
Electrical Information
Information
• 110 V
• 15 A
• 15 A
Certifications and Approvals
NSF® Certified
Yes
UL Listed
Yes
Information
Tier I
Accessories
Included
Drain Hose
Optional
• W10252111
• W10278635RP
• W10288149B
• W11774814
• W10278635RP
• W10288149B
• W11774814

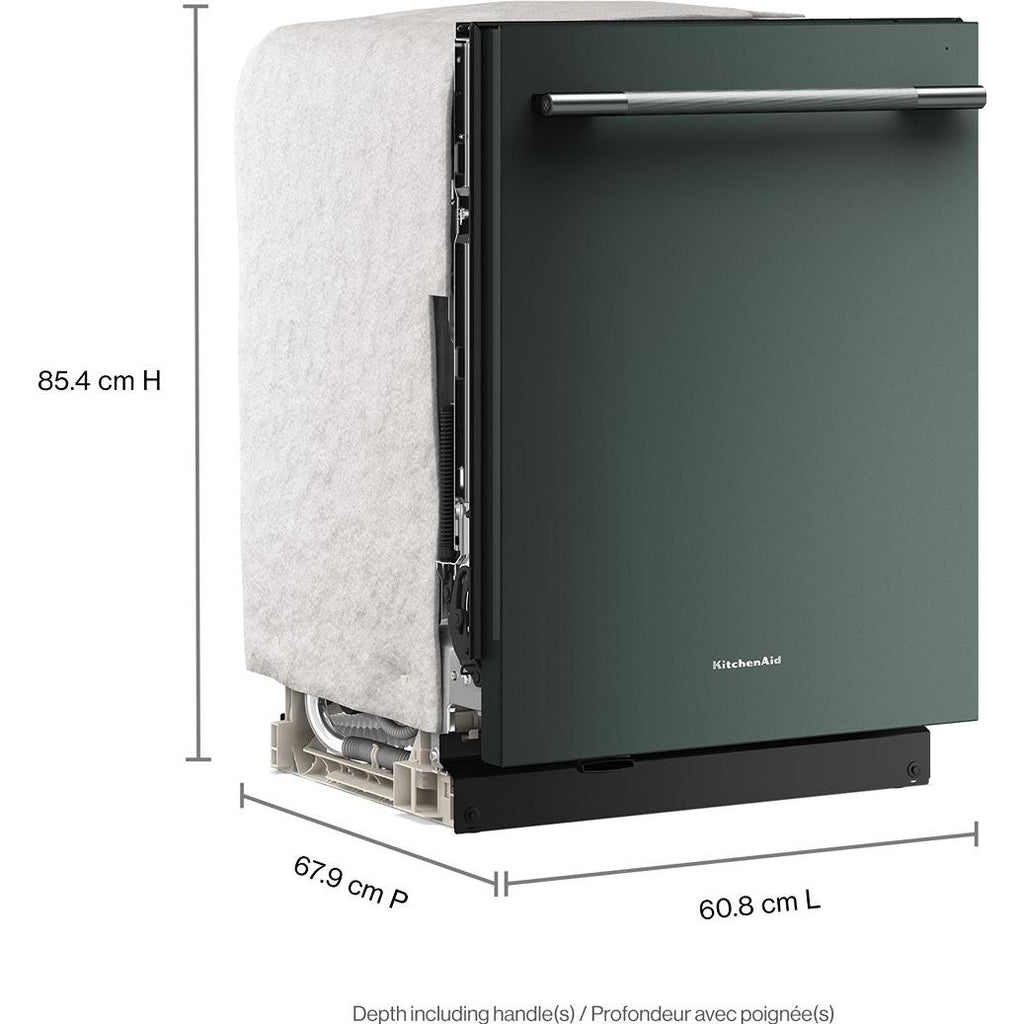

Dimensions
Class Width
24"
Width
23.94 inch(es) / 60.8 cm
Height (Min.)
33.62 inch(es) / 85.4 cm
Depth (Without Handle)
26.73 inch(es) / 67.9 cm
Weight
89 lb(s) / 40.37 kg
Additional Dimensions
• Maximum Height: 34.63"
• Minimum Height: 33.63"
• Depth With Door Open 90 Degree: 51.0"
• Depth Closed Excluding Handles: 24.5"
• Depth Closed Including Handles: 26.75"
• Minimum Height: 33.63"
• Depth With Door Open 90 Degree: 51.0"
• Depth Closed Excluding Handles: 24.5"
• Depth Closed Including Handles: 26.75"
Shipping Dimensions
Width
24.25 inch(es) / 61.6 cm
Height
35.04 inch(es) / 89 cm
Depth
24.25 inch(es) / 61.6 cm
Weight
100 lb(s) / 45.36 kg
UPC
UPC#
883049704937
